5.8ghz FPV Combo Boscam 5.8g 200mw Tx + Recevier RC805 + 800 x 480 Monitor + 700TVL Camera + Mounting Bracket Set

SKU: 0001932
0.69Kg

$68.90

Submit a wholesale Inquiry
69 reward points
Qty: Unit(s)

  • Add to WishLists
  • Add a price reduction notification
  • Add a product notice of arrival

you share on admin



5.8ghz FPV Combo Boscam 5.8g 200mw Tx + Recevier RC805 + Snow Sreen Monitor + Mounting Bracket FPV Gopro Set For Dji

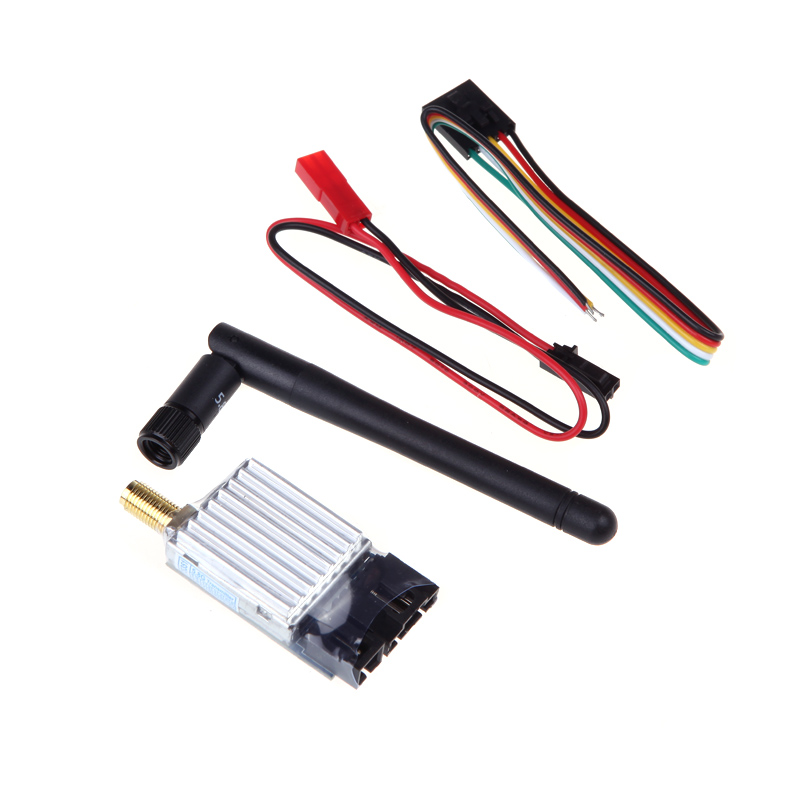

5.8Ghz 200mw Transmitter:



Specification:

5.8Ghz 200mW transmitter(TS351) Specifications:
5.8Ghz 200mW transmitter(TS351). This system is Good for up to 500m flying with the supplied antenna. An optional directional antenna can extend range to 2km+. This unit a Includes built-in microphone. The receiver unit has additional AV outputs for video recording while using FPV goggles.

Features:
Output impedance: 50Ohm
Output power: 21~23dBm
Channels: 8
Transmitter operating voltage: 7~15VDC / 150mA
Receiver operating voltage: 5VDC
Operating temp: -10~85C
Video bandwidth: 0~8.0MHz
Audio frequency: 6.5MHz
Video input level: 0.8~1.2Vp-p
Video input impedance: 75Ohm
Audio input level: 0.5~2.0Vp-p
Audio input impedance: 10K/Ohm
Weight: 25g
Antenna connector: RP-SMA
Dimensions: 55x26x17mm

Channels
5.8G : 5705,5865,5665,5645,5885,5905,5925,5945MHZ

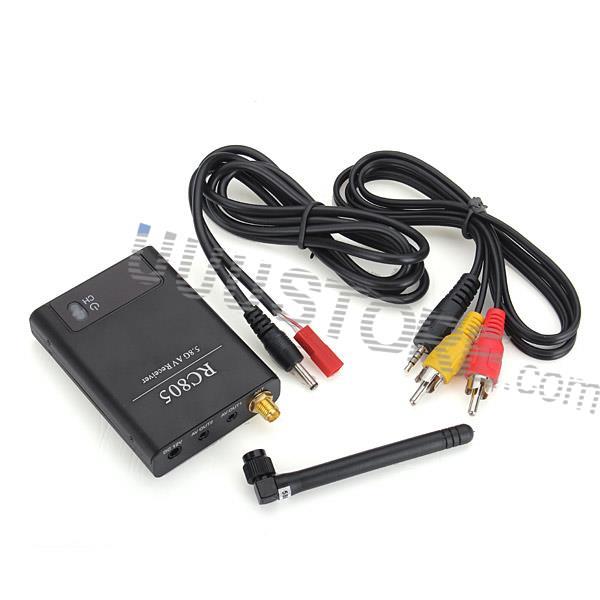

RC805 Receiver Specifications:

The RC805 5.8Ghz AV Receiver features a digital channel display and jumperless, one press channel selection. This receiver also includes an additional AV output for video recording while using FPV goggles.



Features:
Receiving sensitivity: < -90dBm
Receiving frequency: ISM 5.8GHz 8CH
Antenna port: 50ohm RP-SMA
Antenna: Gain: 2dBi
Power supply: DC12V 220mA
Video output level: 1Vp-p @ 75ohm
Audio output level: 1Vp-p @ 10Kohm
Dimensions: 72.5x54.2x15.5mm
Weight: 52g (w/antenna)

Channels
5.8G :
 5705,5685,5665,5645,5885,5905,5925,5945MHZ

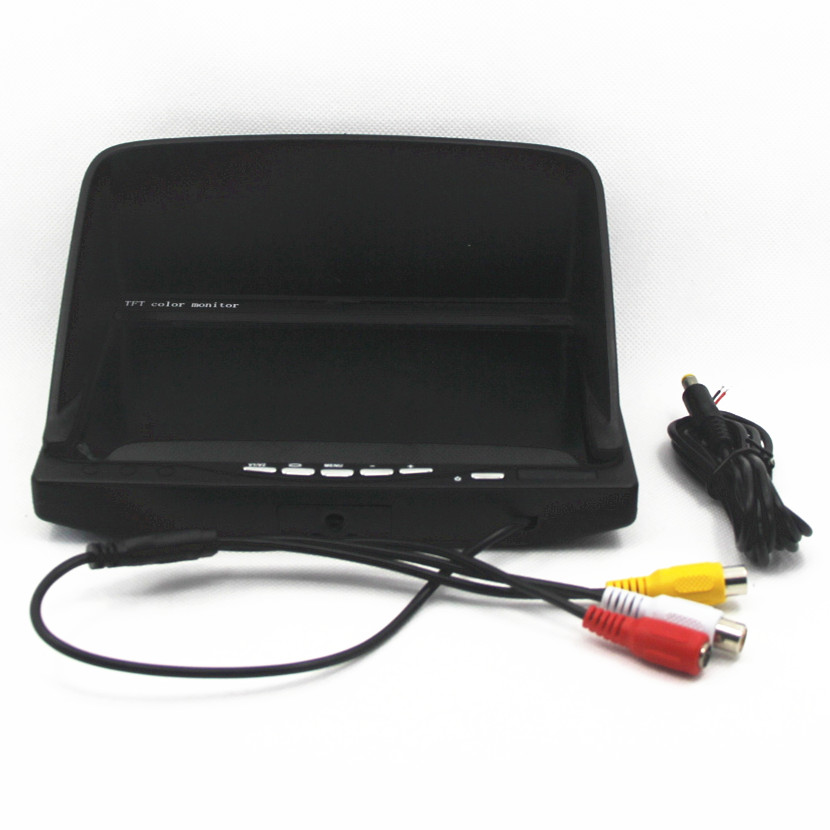

No Blue Sreen Monitor Specifications:



If you are looking for the ideal LCD monitor for your FPV ground station or any other form of aerial videography, the monitor is your best choice! Designed specifically for FPV use and outdoor conditions, a foldable screen shroud is included for optimal viewing. This monitor has a very bright image which is fully adjustable, and a wide power supply voltage range (DC 6~18V).
Features:

Not blue screen when signal is lost
Panel Size: 7.0 inch
Panel Type: TFT LCD
Resolution: 800x480
Backlight: LED
Horizontal Frequency Range: 30~60kHz
Field Frequency Range: 50~75Hz
Dot Pitch: 0.0642 (W) x 0.1790 (H) mm
Display Ratio: 16:9
Brightness: 400 cd/m2;
Contrast Ratio: 500:1
Response Time: 15ms
Viewing Angle: 70°/70° (L/R) 50°/60° (U/D)
Input Voltage: DC 6~18V
Power Consumption:  5W
Working Temperature: -20°C ~ 60°C
Storage Temperature: -30°C ~ 70°C
Dimensions: 182 x 127 x 32mm
Weight: 363g

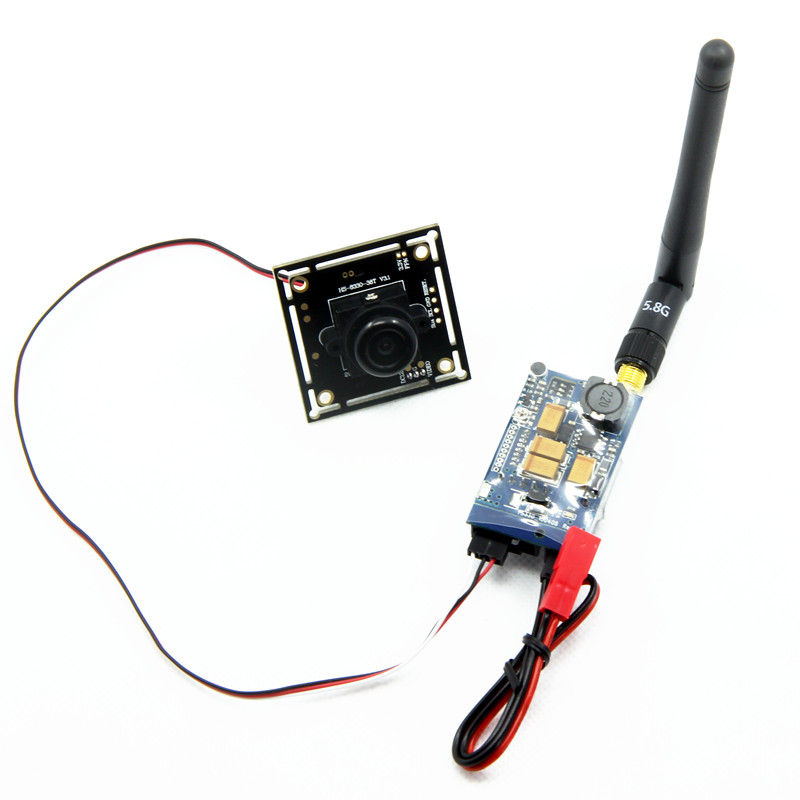

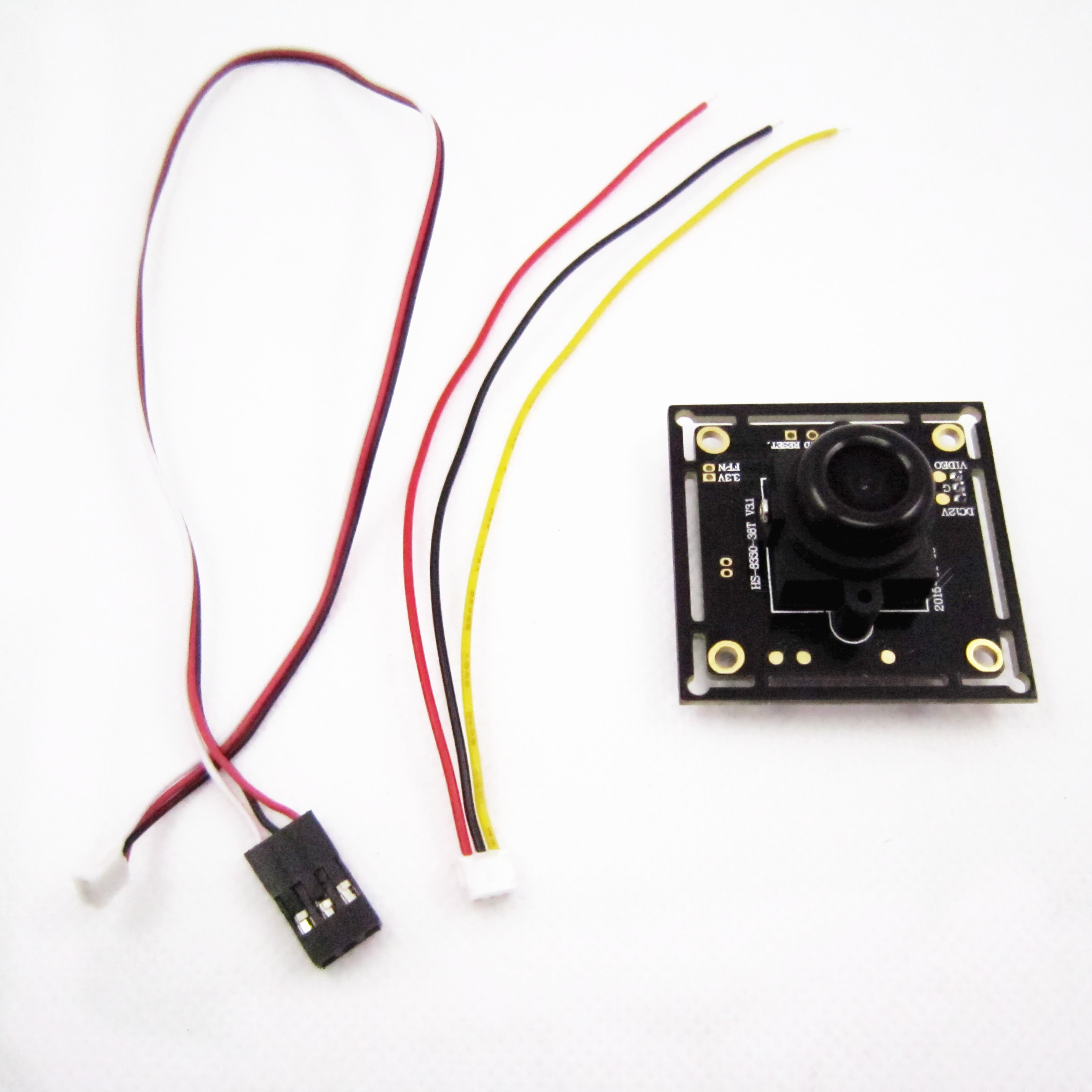

700TVL FPV Camera



Specification:
Image Device: 1/3 Inch COMS Sensor
System: 2.1mm 140 degree
Resolution: 700TVL

Min. Illumination: 0.03 Lux / F1.0
S/N Ratio: More than 52dB
Electronic Shutter: 1/50(60) to 1/100,000
White Balance: Auto
Digital Wide Dynamic Range (D-WDR): ON / OFF
Digital Noise Reduction (2D NR): ON / OFF
Auto Gain Control (AGC): Auto
DAY/NIGHT Mode: Auto/ Color/ Black and White/ External Trigger
Back Light Comp (BLC): ON / OFF
Private Mask: ON / OFF (8 replaceable zone)
Sync. System: Internal synchronization
Video Output: 1Vp-p / 75Ω
Power Requirements: DC 12V
Power Consumption: 80 mA
Operating Temp.: -10 C to +50 C ( 14 F to 122 F )
Operating Humidity: 20 to 80 %
Storage Temp.: 40 C to +60 C ( -40 F to 140 F )
Storage Humidity: 20 to 95 %
Dimension: 38mm x 38mm
Weight: 10g

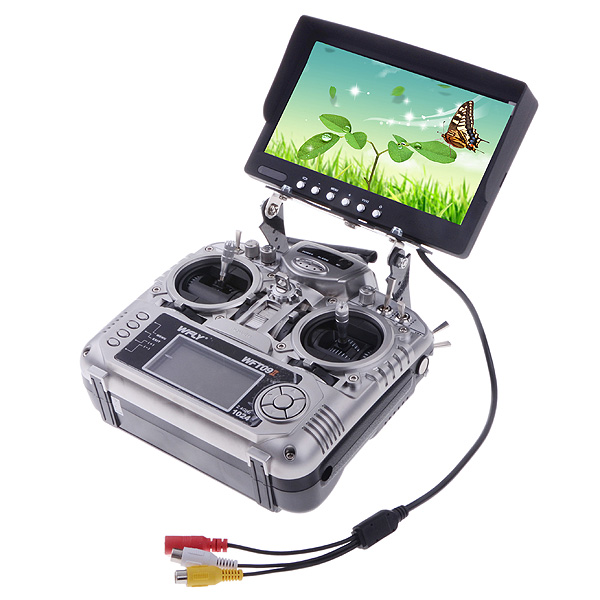

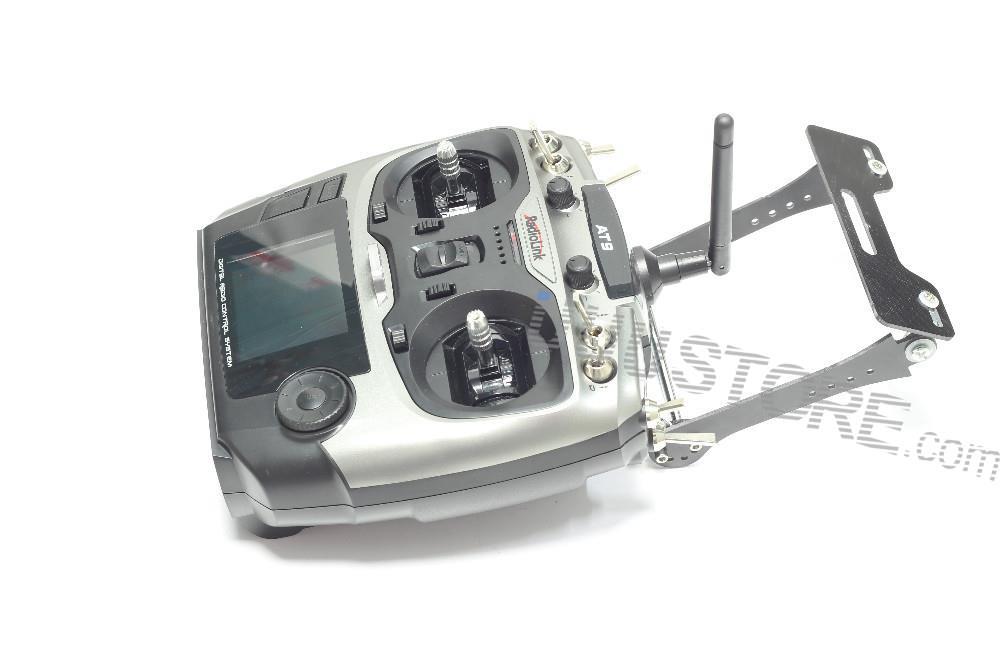

Mounting Bracket:

Features:
Material: 2mm Glass Fiber.
Suitable for the transmitter, and display mast have fixed nut.
Light weight, High strength.
Suitable for 7inch or 8inch monitor.
Compatible with futaba 9c 10c JR 9c WFLY transmitter etc.

Specifications:
Total weight: 60g / 2.1oz
